Milescraft 1333, Dowel Jig Kit (Imperial)

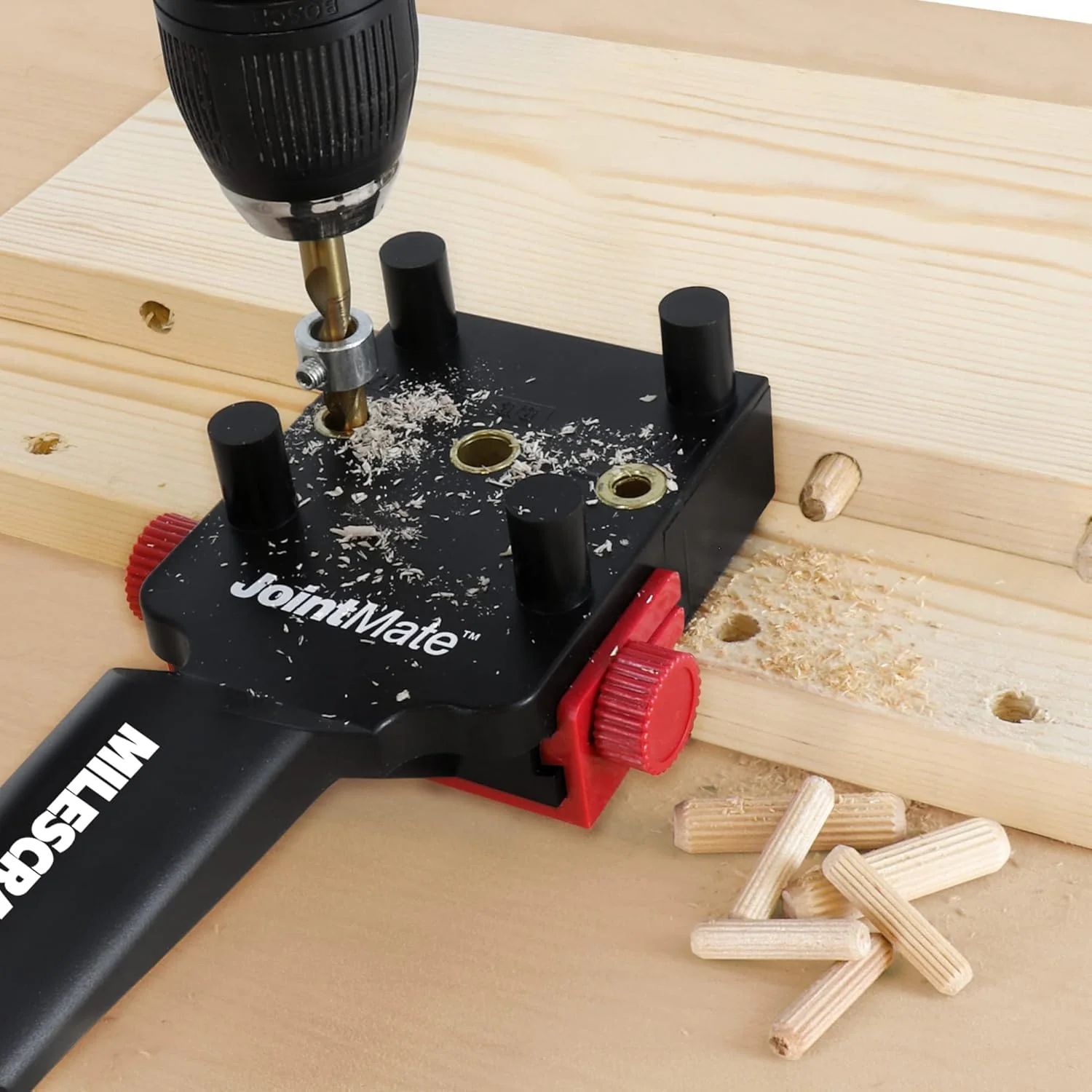

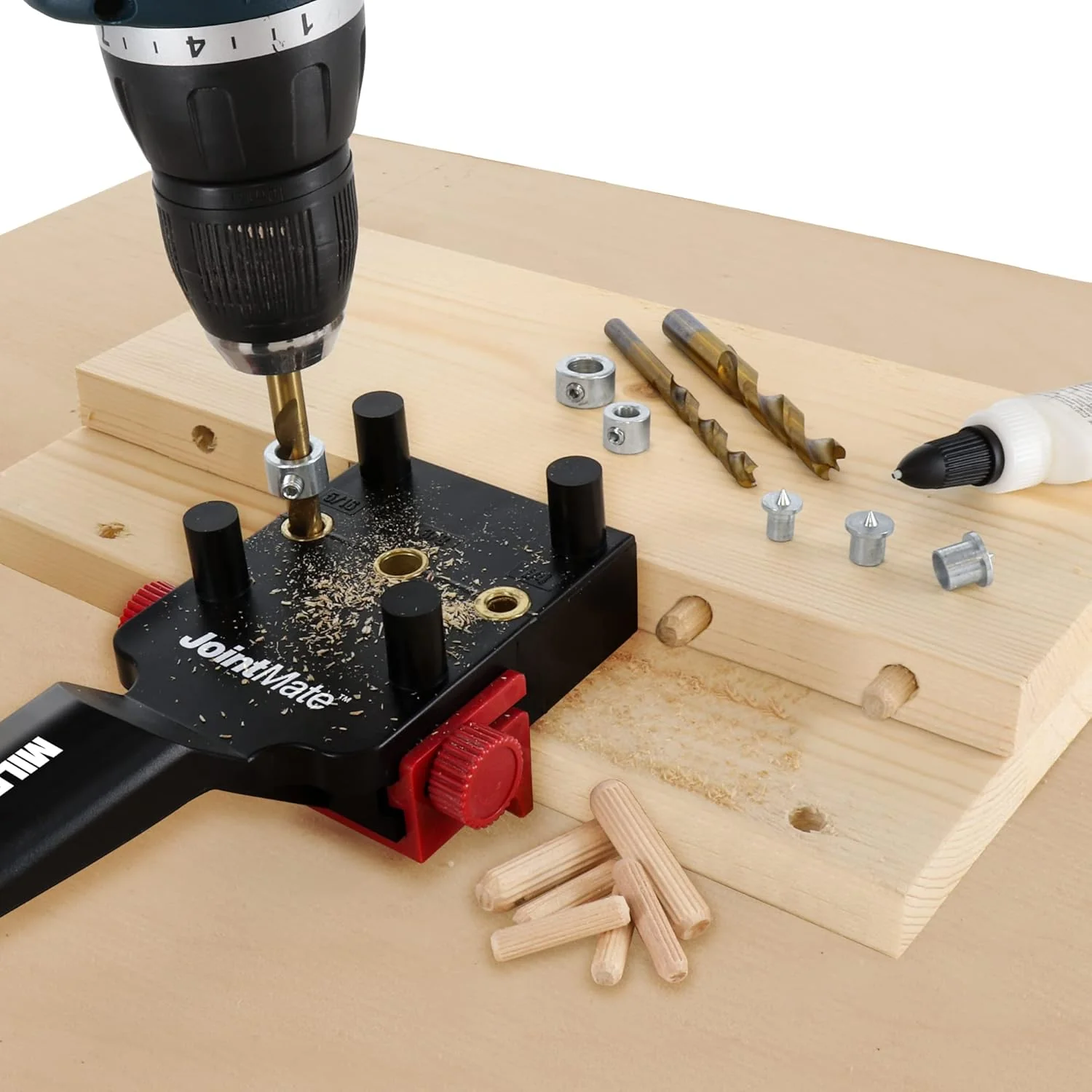

The complete doweling kit contains everything you need to start creating strong and accurate joints. Featuring the JointMate™, this self-centering jig with an adjustable fence allows for precision, accuracy, and maximum joint strength.

Self-Centering Guide Posts

• Perform one-handed alignment and skip the hassle of measuring and marking while creating perfect dowel joints.

Insert Molded Hardened Steel Bushings

• Ensure accurate alignment when drilling for perfectly positioned dowels
• For longer doweling life

Adjustable Guide Fence

• Easily adjust to the depth of the board so that each hole will be precise from one to the next
• Can be removed without removing the guide knobs
• Compatible with 1/2″ to 1-1/2” thick lumber

Steel Dowel/Tenon Centers

•  For durable and accurate location marking of dowel holes or in the second board being joined

Fluted Hardwood Dowel Pins

• Chamfered ends add strength and endurance to your joined surfaces
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Brad Point Drill Bits

• Bits ensure pinpoint accuracy
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Steel Drill Stops

• For durable performance
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Specs

• Drill Bushings, Stops, Bits, and Pin Sizes: 1/4″, 5/16″, 3/8″
• Minimum Board Width (not thickness) for 1/4″ & 5/16″ bushing: 2″
• Minimum Board Width (not thickness) for 3/8″ bushing: 3-1/4″
• Closest distance for dowel from board end (for 1/4″ and 5/16″ bushing): 1-1/8″
• Closest distance for dowel from board end (for 3/8″): 1-5/8″
• JointMate Body Material: ABS Plastic

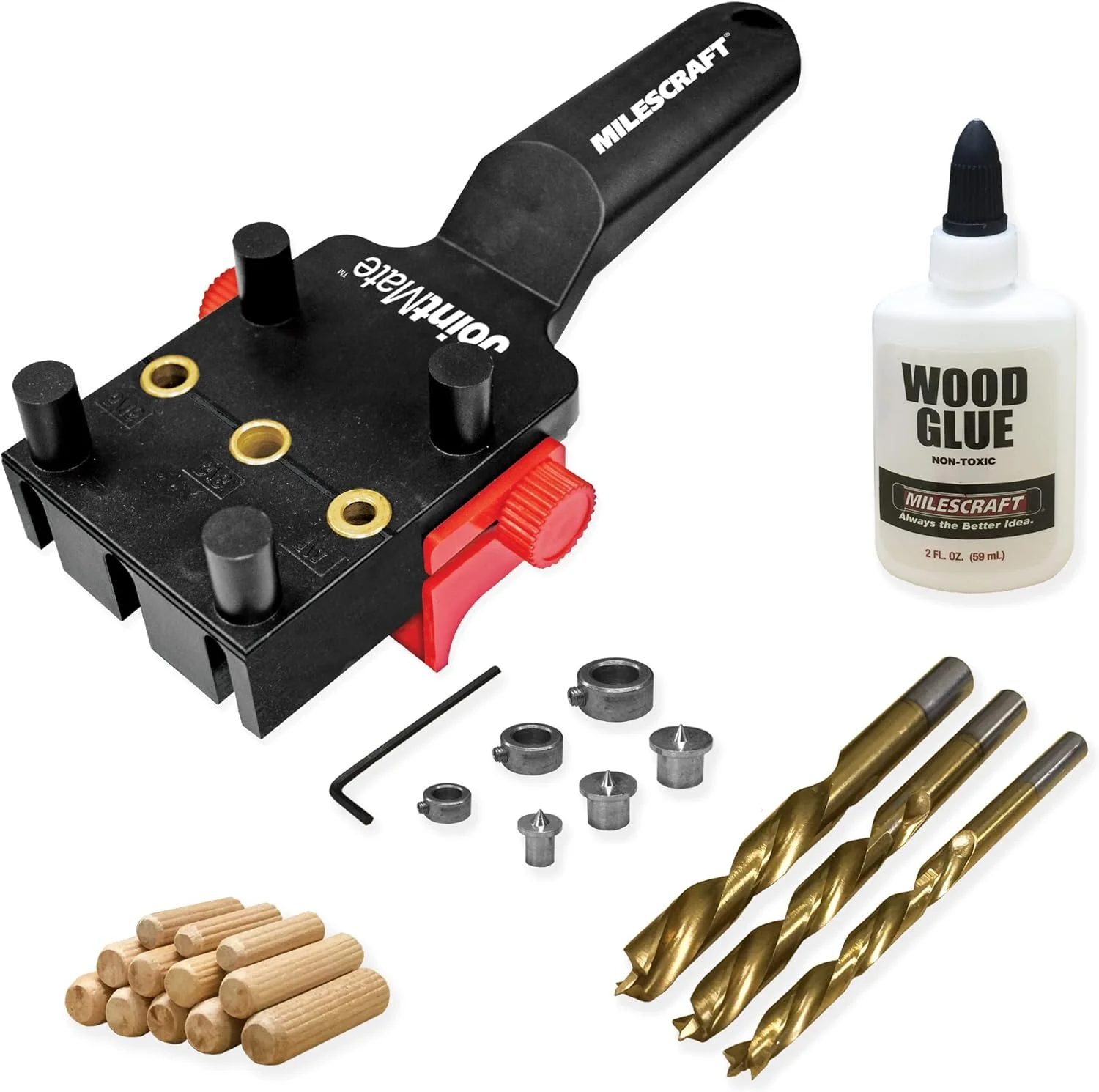

• Includes: JointMate, (62) Dowel Pins, (6) Dowel Centers, (3) Brad Point Bits, (3) Drill Stops, Allen Wrench, Wood Glue, Heavy-Duty Storage Case (82 piece kit)
• Drill guide bushing block material: Hardened Steel
• For use with: Materials from 1/2” to 1-1/2” thick (12-38mm)
